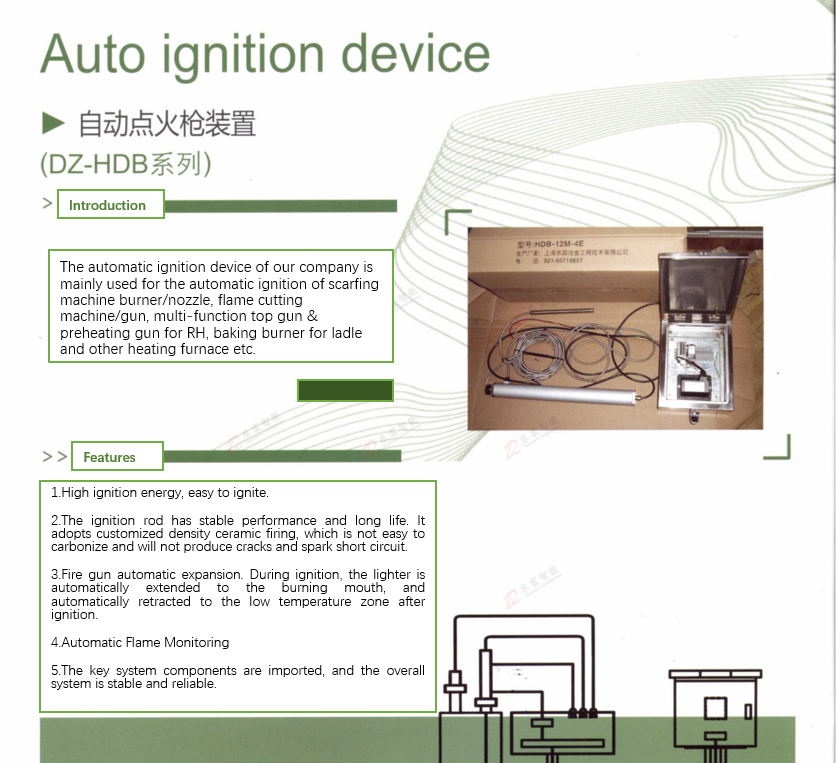

The automatic ignition device of our company is mainly used for the automatic ignition of scarfing machine burner/nozzle, flame cutting machine/gun, multi-function top gun & preheating gun for RH, baking burner for ladle and other heating furnace etc.Their main characteristics are as follows:
● High ignition energy, easy to ignite.
● The ignition rod is made of high density ceramic, with long service life and stable operation.
● The lighter & ignitor can automatically shrink according to necessary, and shrink back to the high temperature area after ignition.
Composition of high-energy point lighter device and equipment | ||||
serial number | Name | Type | Specification | Explanation |
1 | driving unit | DZ-HDB-01-XXX | Length : L=520 Program:0-400mm. | The installation interface is the G1 internal thread Customize according to the order requirements |
2 | Special proximity switch | DZ-HDB-02 | ||
3 | Special high-voltage cable line | DZ-HDB-03 | Length :13-15M | Metal-containing protective casing |
4 | Lighting-off torch | DZ-HDB-04-XXX | Length 450mm | |
5 | High pressure resistant ignition rod | DZ-HDB-05-XXX | Length 240mm | |
6 | High pressure package | DZ-HDB-06-220 | 220VAC | |
7 | power transformer | DZ-HDB-07-220/12D | 220VAC/12VDC | |
8 | field & local site protective box | DZ-HDB-08 | W300XH220XD150 | Internal configuration IP54 |
9 | Flame detection controller | DZ-HDB-09 | 220VAC/12VDC | |
10 | Detector mounting base | DZ-HDB-10 | ||
11 | Flame detection sensor | DZ-HDB-11 |
